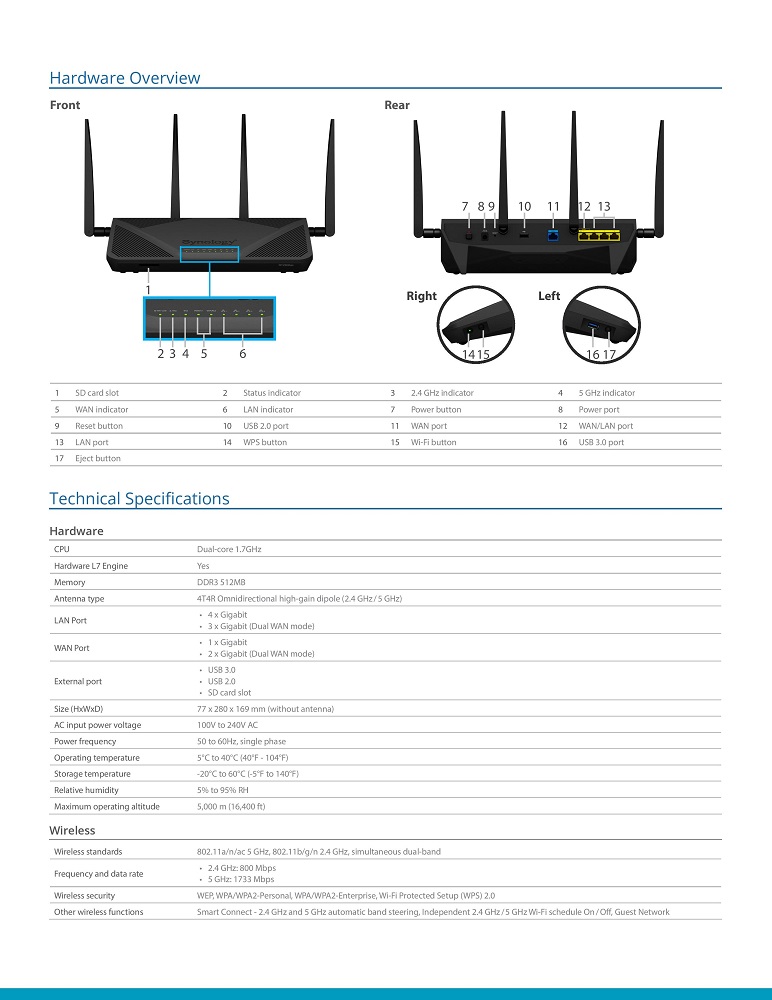

| Hardware Specifications | |
| CPU | Dual core 1.7 GHz |
| L4/L7 Hardware Acceleration Engine | |
| Memory | 512 MB DDR3 |
| Antenna type | 4x4 MIMO Omni-directional high-gain dipole (2.4GHz / 5GHz) |
| LAN port |
|
| WAN port |
|
| External Ports |
|
| Button and switch | WPS, USB/SD eject, Power, Reset, Wi-Fi On/Off |
| Appearance | |
| Size (Height x Width x Depth) | 77 mm x 280 mm x 169 mm (without antenna) |
| Weight | 0.7 kg |
| Others | |
| AC Input Power Voltage | 100V to 240V AC |
| Power Frequency | 50/60 Hz, Single Phase |
| Power Consumption* | 10.80 W (Access) 7.94 W (Idle) |
| Temperature | |
| Operating Temperature | 5°C to 40°C (40°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Certification |
|
| Wi-Fi Certification |
|
| Warranty | 2 Years |
| Wireless | |
| IEEE 802.11ac |
|
| IEEE 802.11ac wave 2 |
|
| Beamforming | |
| DFS | |
| WDS | |
| Schedulable Wi-Fi | |
| WPS 2.0 (Wi-Fi Protected Setup 2.0) | |
| 3G/4G mobile dongle support (Learn more) | |
| Maximum MAC filters | 64 |
| Maximum connected devices | 100 |
| Note |
|
| Network | |
| Internet connection | Dynamic IP, Static IP, PPPoE |
| Port forwarding | Setup via manual management or UPnP |
| Maximum port forwarding rules | 64 |
| Maximum UPnP rules | 64 |
| Port triggering | |
| Maximum port triggering rules | 32 |
| Minimum port triggering timeout | 30s |
| Maximum port triggering timeout | 3600s |
| DMZ | |
| IPv6 | IPv6 DHCP server/client, IPv6 tunneling |
| DHCP | Server/client mode, client list, MAC address reservation |
| Maximum DHCP reservations | 500 |
| LAN/WLAN IGMP snooping | |
| VPN |
|
| Policy route, Static route, Network Address Translation (NAT), PPPoE relay | |
| Maximum IPv4 static routes | 100 |
| Maximum IPv6 static routes | 100 |
| Diagnosis tools |
|
| Management | |
| Operating system | Synology Router Manager (SRM) |
| Free OS upgrade | |
| Anywhere access to SRM | Synology QuickConnect & Dynamic DNS (DDNS) |
| Operation modes | Wireless Router, Wireless AP, Wireless Repeater |
| Wake on LAN (WOL) | |
| WOL over QuickConnect | |
| Maximum connected devices | 100 |
| Notification | Email, SMS, push service (via DS router) |
| SSH | |
| SNMP | |
| Configuration backup & restore | |
| User account management | |
| Printer server | Maximum printer: 1 |
| Parental Control | |
| Maximum devices | 50 |
| Customized Internet schedule | |
| IPv4 DNS-based web-filter with built-in database | |
| IPv4 Customized allow/block list | |
| Maximum blocked URLs | 100 |
| Maximum allowed URLs | 100 |
| Default policy | |
| Traffic Control | |
| Internet ban, device speed & priority | |
| Application layer (L7) quality of service (QoS) | |
| Maximum device rules | 64 |
| Maximum application rules per device | 32 |
| Traffic Monitor | |
| Live view | |
| Historical statistics | Daily, Weekly, Monthly, Annual |
| Website history | |
| Traffic Report | |
| Schedulable | |
| Traffic analysis period | Daily, Weekly, Monthly, Annual |
| Export formats | .CSV, .HTML |
| Security | |
| Wi-Fi encryption | WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise |
| Wi-Fi MAC address filter | |
| Firewall/SPI Firewall | |
| DoS Protection | |
| Auto block | |
| SSL certificate | |
| Security Advisor | |
| Mobile Apps | |
| DS cloud (Android/iOS) | |
| DS get (Android/iOS) | |
| DS file (Android/iOS) | |
| DS router (Android/iOS) |
|
| VPN Plus (Android/iOS) | |
| USB/SD Card File Service | |
| File System | EXT4, FAT, NTFS, HFS+ |
| Access support |
|
| Protocol support | Windows file service (CIFS), Mac file service (AFP), FTP/FTPS, WebDAV |
| Apple Time Machine | |
| Shared Folder privileges | |
| Storage hibernation | |
| Package Center | |
| Cloud Station Server | Sync data from multiple platforms, centralizing it on the router while easily keeping historical versions of important files. |
| Maximum Concurrent File Transfers | 128 |
| Note | Cloud Station ShareSync is not supported |
| DNS Server | Helps users find and translate domain names into IP addresses |
| Download Station | Supported download protocols: BT/HTTP/FTP/NZB/eMule |
| Maximum concurrent download tasks | 50 |
| Maximum concurrent BT download tasks | 20 |
| Media Server (DLNA/UPnP®) |
|
| RADIUS Server | Provides centralized authentication, authorization, and accounting for wireless network access |
| VPN Plus Server | Easily create and manage secure VPN access through a web browser or client. Supports various VPN services — WebVPN, SSL VPN, SSTP, OpenVPN, L2TP over IPSec, and PPTP. |
| Maximum Connections | 20 |
| Site-to-Site VPN (Beta) | |
| Intrusion Prevention (Beta) | Greatly enhance the security of your router with IDS and IPS systems, designed to safeguard your network against internet threats. |
| Intrusion Detection System (IDS) | |
| Intrusion Prevention System (IPS) | |
| Packaging Content |
|
